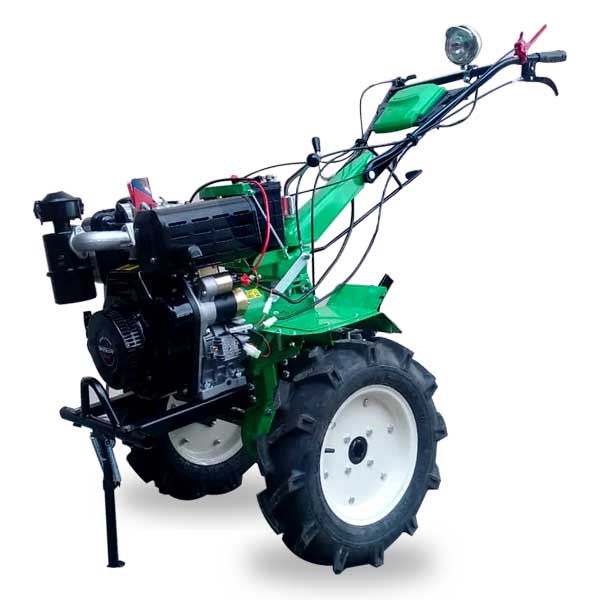

**Model:** ARS-SR105-D
**Engine Type:** SR178FD – Single Cylinder, Four-Stroke, Air-Cooled Diesel Engine with Direct Injection
**Power:** 7 Horsepower
**Engine Oil Type:** SAE20W-50 with API SE and higher classification
**Transmission Type:** Mechanical, Large Size 9-Horsepower Oil-Bath Gearbox with P.T.O. Shaft
**Gearbox Oil Type:** SAE85W-90 (Viscous)
**Gearbox Oil Capacity:** 2 Liters
**Fuel Tank Capacity:** 2.5 Liters
**Maximum Fuel Consumption:** 1.15 Liters per Hour
**Engine Oil Capacity:** 1.1 Liters
**Wheel Type:** 12-5.00
**Working Depth:** Up to 30 centimeters
**Battery Type:** 12V-35A
**Starting Type:** Electric Start
**Clutch Type:** Multi-Plate Disc, Oil-Bath Type
**Blade Type and Material:** 8-Row Quadruple Blades (4G-4P on each side), Steel
**Model:** ARS-SR105-D
**Engine Type:** SR178FD – Single Cylinder, Four-Stroke, Air-Cooled Diesel Engine with Direct Injection
**Power:** 7 Horsepower
**Engine Oil Type:** SAE20W-50 with API SE and higher classification
**Transmission Type:** Mechanical, Large Size 9-Horsepower Oil-Bath Gearbox with P.T.O. Shaft
**Gearbox Oil Type:** SAE85W-90 (Viscous)
**Gearbox Oil Capacity:** 2 Liters
**Fuel Tank Capacity:** 2.5 Liters
**Maximum Fuel Consumption:** 1.15 Liters per Hour
**Engine Oil Capacity:** 1.1 Liters
**Wheel Type:** 12-5.00
**Working Depth:** Up to 30 centimeters
**Battery Type:** 12V-35A
**Starting Type:** Electric Start
**Clutch Type:** Multi-Plate Disc, Oil-Bath Type
**Blade Type and Material:** 8-Row Quadruple Blades (4G-4P on each side), Steel
مدل | ARS-SR105-D |
---|---|
نوع موتور | SR178FD، تک سیلندر، دیزل، چهارزمانه، هوا خنک، تزریق مستقیم |
قدرت موتور (اسب بخار) | 7 |
نوع روغن موتور | SAE20W-50 با کلاس کیفی API SE و بالاتر |
نوع گیربکس | مکانیکی روغنی سایز بزرگ 9 اسبی با شافت P.T.O |
نوع روغن گیربکس | واسکازین SAE85W-90 |
ظرفیت روغن گیربکس | 2 لیتر |
ظرفیت مخزن سوخت | 2.5 لیتر |
حداکثر مصرف سوخت | 1.15 لیتر بر ساعت |
ظرفیت روغن موتور | 1.1 لیتر |
نوع چرخ | 12-5.00 |
عمق کار | حداکثر 30سانتی متر |
نوع باتری | 12V-35A |
نوع استارت | استارت الکتریکی |
نوع کلاچ | دیسکی چند صفحهای روغنی |
نوع و جنس تیغه | فولادی 8 ردیفه 4 تایی(هر طرف4G-4P) |
The Ars Machine Group is a manufacturing and trading complex that operates in the field of agricultural machinery, gardening, green space, and livestock and poultry equipment, with a focus on small to medium-sized machines. The group’s headquarters and factory are located in the Maloosjan Industrial Town in Fars Province.
